High-Strength M10 Hex Bolts: Precision Dimensions for Demanding Industrial Applications
In the world of industrial fastening, precision and reliability are non-negotiable. Our M10 Hex Bolts are engineered to meet the exacting standards of global manufacturing, construction, and machinery assembly. Designed with strict adherence to international dimensional standards, these bolts provide a robust and dependable solution for creating secure, long-lasting connections. Understanding the precise hex bolt m10 dimensions is critical for engineers and procurement specialists to ensure perfect fit, optimal load distribution, and assembly efficiency. This product page details the specifications, features, and advantages of our premium M10 hex bolt series.
Product Overview

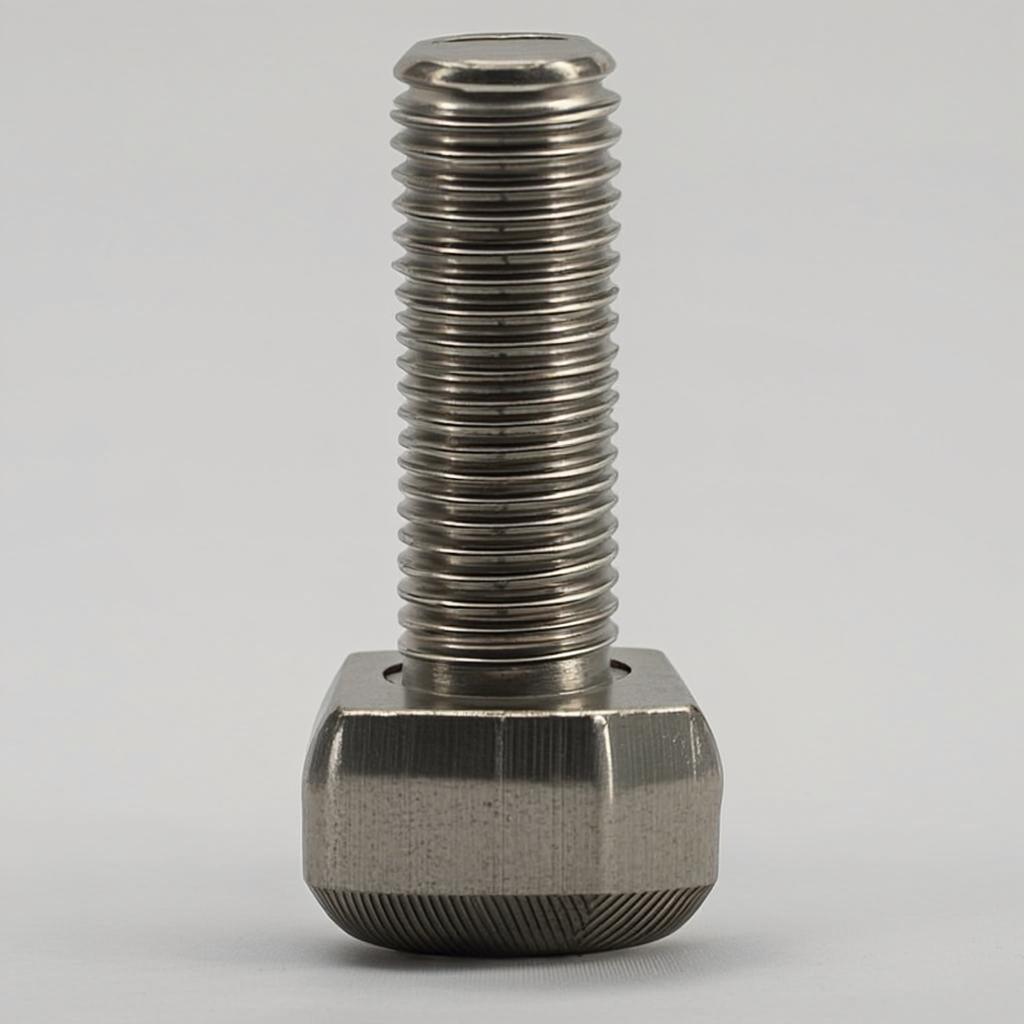

Our M10 Hex Bolts are high-performance fasteners characterized by their six-sided (hexagonal) head, which allows for high torque application with standard tools. The "M10" designation refers to the metric thread diameter of 10 millimeters, a widely used and versatile size in industrial applications. These bolts are manufactured from high-grade steel and undergo rigorous quality control to ensure consistent thread pitch, head dimensions, and mechanical properties. They are available in various grades, finishes, and lengths to suit a broad spectrum of clamping requirements, from light-duty fixtures to critical structural joints.
Key Features
- Precision Engineering: Manufactured to ISO 4014/4017 and DIN 933/931 standards, guaranteeing consistent and accurate hex bolt m10 dimensions for global compatibility.
- High-Strength Material: Made from Grade 8.8, 10.9, or 12.9 alloy steel, offering superior tensile strength and yield point for demanding applications.
- Corrosion Resistance: Available with multiple finish options including zinc plating (blue/white), hot-dip galvanizing, and geomet coatings for enhanced durability in various environments.
- Full Thread & Partial Thread: Offered in both fully threaded (set screw) and partially threaded (bolt) styles to provide flexibility for specific clamping and shear load needs.
- Excellent Wrenchability: The hexagonal head design ensures a firm grip, preventing tool slippage and allowing for efficient installation and removal.
Technical Specifications
The following table outlines the standard hex bolt m10 dimensions and critical technical data. Custom lengths and special dimensions are available upon request.
| Parameter | Standard Value (ISO/DIN) | Notes |
|---|---|---|
| Thread Diameter (d) | 10 mm | M10 Metric Coarse Thread |
| Pitch (P) | 1.5 mm | Standard coarse pitch |
| Head Width Across Flats (s) | 17 mm | Standard wrench size |
| Head Width Across Corners (e) | 19.63 mm (Min) | - |
| Head Height (k) | 6.63 mm (Nominal) | For Hex Head Bolt |
| Standard Lengths (l) | 20mm to 200mm+ | Measured from under-head to tip |
| Property Class | 8.8, 10.9, 12.9 | Tensile Strength: 800 MPa, 1000 MPa, 1200 MPa min. |
| Standards | ISO 4014, ISO 4017, DIN 933, DIN 931 | Fully compliant |
Application Scenarios
The versatility of the M10 hex bolt, defined by its balanced strength and standardized hex bolt m10 dimensions, makes it suitable for a vast array of industrial sectors:
- Heavy Machinery & Equipment: Assembly of frames, housings, and components in construction, agricultural, and mining machinery.
- Structural Steelwork: Connecting steel beams, brackets, and supports in building construction and infrastructure projects.
- Automotive & Transportation: Used in chassis assembly, engine mounts, and truck body building.
- Industrial Manufacturing: Securing fixtures, jigs, conveyor systems, and heavy-duty enclosures on factory floors.
- Renewable Energy: Structural connections in wind turbine assemblies and solar panel mounting frameworks.
Advantages
- Interchangeability & Global Supply: Strict adherence to ISO/DIN standards ensures our bolts are interchangeable with components from suppliers worldwide, simplifying procurement and maintenance.
- Optimized Strength-to-Weight Ratio: The M10 size offers an ideal balance of high clamping force and manageable size, suitable for a majority of medium-to-heavy-duty applications.
- Reduced Assembly Time: Standardized hex bolt m10 dimensions mean workers use common tools (17mm wrench/socket), speeding up installation and reducing errors.
- Proven Reliability: Manufactured with controlled heat treatment and thread rolling processes, our bolts deliver consistent performance, reducing the risk of joint failure.
- Cost-Effective Inventory: As a common industrial size, stocking M10 hex bolts provides high utility for multiple projects, optimizing inventory costs.
Why Choose Us
Selecting the right fastener supplier is as crucial as selecting the right fastener. Here’s what sets us apart:
- Technical Expertise: Our team provides expert support on fastener selection, ensuring you get the correct grade, finish, and hex bolt m10 dimensions for your specific application.
- Rigorous Quality Assurance: Every batch undergoes dimensional checks, hardness testing, and salt spray tests (for coatings) to guarantee compliance with specifications.
- Flexible Logistics for Global Trade: We are experienced in packaging, documentation, and shipping for international B2B customers, ensuring timely and hassle-free delivery.
- Competitive Pricing & MOQ: We offer scalable pricing and flexible Minimum Order Quantities (MOQs) suitable for both large projects and ongoing supply contracts.
- Commitment to Consistency: We understand that in manufacturing, consistency is key. Our production processes are designed to deliver the same high-quality product, order after order.
FAQ
Q1: What is the exact wrench size for a standard M10 hex bolt?
A: The standard wrench size (across flats dimension) for an M10 hex bolt head is 17mm. This is a critical part of the hex bolt m10 dimensions for tool selection.
Q2: What is the difference between DIN 933 and DIN 931 M10 bolts?
A: DIN 933 refers to a fully threaded hex bolt (also called a hex set screw), while DIN 931 refers to a partially threaded hex bolt with an unthreaded shank under the head. The choice depends on whether the application requires clamping force along the entire length (933) or benefits from a shear-resistant shank section (931).
Q3: Can you provide M10 hex bolts with different thread pitches?
A: Yes. While the standard coarse pitch is 1.5mm, we can supply M10 bolts with a fine pitch (e.g., 1.25mm) for applications requiring finer adjustment or where vibration resistance is a higher priority. Please specify your requirement.
Q4: How do I choose between Property Class 8.8, 10.9, and 12.9?
A: This depends on the required tensile strength and application:
- 8.8: General purpose, most common for structural and machinery.
- 10.9: High strength, used in automotive and high-stress dynamic loads.
- 12.9: Alloy steel, highest strength for critical, high-pressure applications. Not recommended for use in high-vibration environments without proper design.
Q5: What packaging options are available for export?
A: We offer export-ready packaging including 25kg/50lb master cartons, 1-ton pallet boxes, or custom packaging with your labeling. All packages are sealed and protected to prevent corrosion during transit.
